Wasserklares 'Casting' Epoxidharz

Kaufen Sie Smooth-On bei FormX

Smooth-On ist einer der weltweit führenden Hersteller von 3D-Modellierungsmaterialien wie Formenbau-, Gieß- und Spezialeffektmaterialien, industrielle Gießharze, Klebstoffe und Ausrüstung. FormX ist Vertriebspartner von Smooth-On-Produkten in Europa.

EpoxAcast™ 650

Epoxacast 650

EpoxAcast® 650 ist ein Allzweck-Gussmineralgefülltes Epoxidharz welche kostengünstig und vielseitig einsetzbar ist. Es verfügt über eine niedrige Mischviskosität für minimalen Blaseneinschluss . Wählen Sie eine Schnelle, Mittel oder Langsame Katalysator zu Ihrem Projekt. Sie können zu den HT auch Härter verwenden um Ihre Abgüsse höhere Hitzebeständigkeit zu verleihen.

EpoxAcast® 650 wird zur Herstellung von Hartmetallwerkzeugen zum Stanzen sowie Muster und Vorrichtungen verwendet. Es wird ebenso für elektrische Einkapselung verwendet, damit die Lebenszyklen verlängert werden, oder um die Leistung von vergossene elektronische Geräte zu verbessern. Die hohe Druckfestigkeit macht es ideal für die Herstellung von Stempeln für die Produktion von Pressen oder Metallverzierungen .

EpoxAcast 650 Basis (Teil A) und Härter (Teil B), die separat erhältlich. Wählen Sie aus 101 FAST, 102 MEDIUM, SLOW oder HT 103 Härter

epoxacast 650

  • Epoxacast 650 /5,44 kg

    Mineral Filled

    107,80 EUR

Epoxacast 650 hardeners sold seperately

Epoxacast 650 mixing ratio pot life cure time
101 fast hardener 100A:12B 20 minutes 1 hour
102 medium hardener 100A : 13B 90 minutes 4 hours
103 slow hardener 100A : 14B 3,5 hours 24 hours
HT high temperature hardener 100A : 10B 3,0 hours 24 Hours followed by: Heat cure for 2 hrs at 175°F/80°C followed by 3 hrs at 300°F/150°C

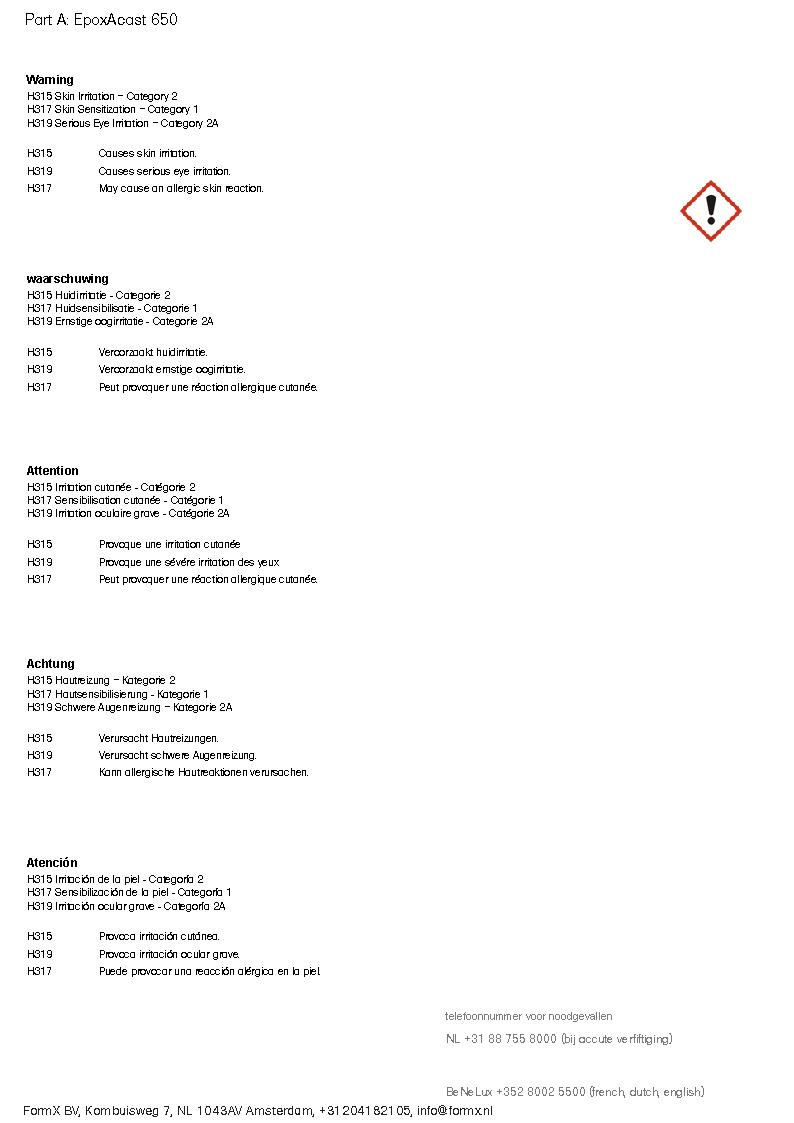

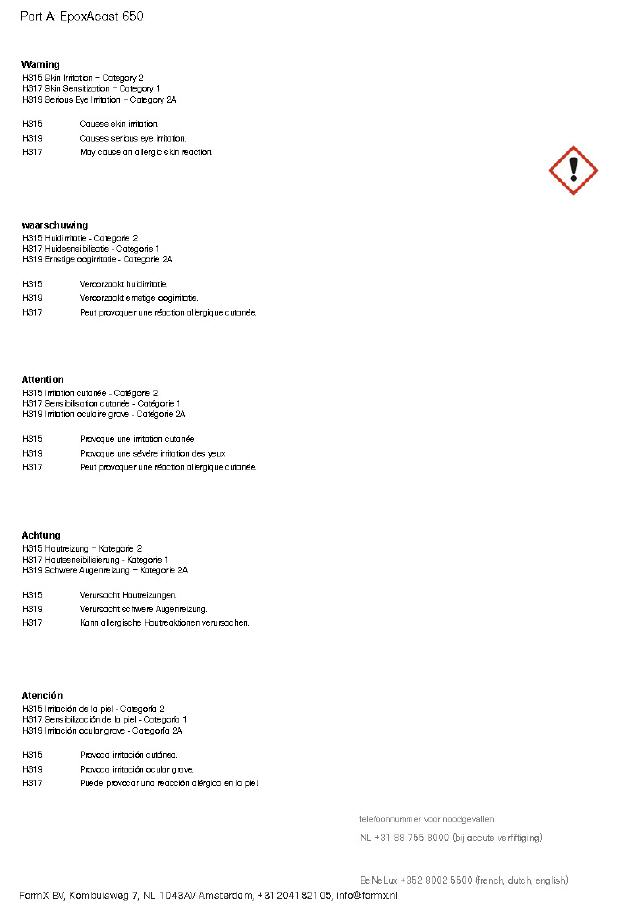

EpoxAcast™ 650 Safety

- Lesen Sie das Sicherheitsinformationsetikett. Klicken Sie auf das Bild.

- Read the safety information label. Click on the image

- Lisez les informations de sécurité cliquez sur l'image

- Lea la etiqueta de información de seguridad. Haga clic en la imagen

- Lees het veiligheidsinformatie label. Klik op de afbeelding.

Epoxacast HT Hardener

  • Hardener HT (High Temperature) /180gr

    HT HIGH TEMP Hardener - Trial Size PART B ONLY When used with EpoxAcast 650: Mix ratio: 100A:10B by weight Pot Life: 3 hours - Cure Time: 24 hours followed by heat cure schedule - see technical bulletin Net Weight : .4 Lbs.

    21,72 EUR

EpoxAcast™ 655

Hardener Safety Information

epoxacast 655

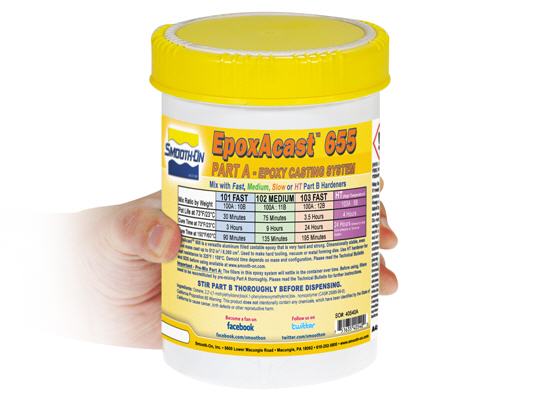

  • Epoxacast 655 /1,36kg

    EpoxAcast® 655 (formerly Metalset® A-30) is a versatile aluminum filled castable epoxy resin that is very hard and strong. It is dimensionally stable, even when mass cast up to 512 in3/ 8,390 cm3. Different hardener speed options are available depending on your project requirements. Maximum heat resistance is achieved using HT HIGH TEMP hardener (up to 225°F/108°C). N.B. Hardener sold seperately: Epoxacat 101 (fast), -102 (medium) or -103 (slow)

    68,89 EUR

Epoxacast Hardeners

  • Hardener 101 (fast) /230gr

    101 FAST Hardener - Trial Size PART B ONLY When used with EpoxAcast 650: Mix ratio: 100A:12B by weight Pot Life: 20 min. - Cure Time: 1 hour Net Weight : 0.5 Lbs.

    23,24 EUR

  • Hardener 101 Slow Quart

    This is the Hardner ONLY for the EpoxAmite System - The FAST version. EpoxAmite 100 Epoxy Laminating System is an easy-to-use liquid epoxy system formulated for a wide variety of fabrication appl...

    68,46 EUR

  • Hardener 102 (medium) /270gr

    102 MEDIUM Hardener - Trial Size PART B ONLY When used with EpoxAcast 650: Mix ratio: 100A:13B by weight Pot Life: 90 min. - Cure Time: 4 hours Net Weight : 0.5 Lbs.

    17,46 EUR

  • Hardener102 Medium 1.04 kg

    102 MEDIUM Härter - In Verbindung mit EpoxAcast 650: Mischungsverhältnis: 100A: 13B nach Gewicht ...

    40,74 EUR

  • Hardener 103 (slow) /250gr

    103 SLOW Hardener - Trial Size PART B ONLY When used with EpoxAcast 650: Mix ratio: 100A:14B by weight Pot Life: 3.5 hours - Cure Time: 24 hours Net Weight : 0.5 Lbs.

    24,41 EUR

  • Hardener 103 Slow Quart

    103 SLOW Härter - Trial Größe TEIL B nur in Kombination mit EpoxAcast verwendet 650: Verhältnis m...

    46,83 EUR

Epoxacast Hardener Safety

- Lesen Sie das Sicherheitsinformationsetikett. Klicken Sie auf das Bild.

- Read the safety information label. Click on the image

- Lisez les informations de sécurité cliquez sur l'image

- Lea la etiqueta de información de seguridad. Haga clic en la imagen

- Lees het veiligheidsinformatie label. Klik op de afbeelding.

Epoxacast 655 hardener sold seperately

Epoxacast 655 mixing ratio pot life cure time
101 fast hardener 100A:10B 30 minutes 90 minutes
102 medium hardener 100A : 11B 75 minutes 135 minutes
103 slow hardener 100A : 12B 3 hours 195 minutes
HT high temperature hardener 100A : 8B 4 hours 24 Hours followed by: Heat cure for 2 hrs at 175°F/80°C followed by 3 hrs at 300°F/150°C

Epoxacast 655

EpoxAcast® 655 (vormals Metalset® A-30) ist ein vielseitiger gießbaren aluminiumgefüllten Epoxidharz, das sehr hart und fest ist. Es ist formstabil , auch wenn Sie Masse auf 8,390 cm3 gießen. Härter mit verschiedene Geschwindigkeitsoptionen stehen zur Verfügung je nach Projektanforderungen. Maximale Hitzebeständigkeit HT HIGH TEMP Härter erreicht (bis zu 225 ° F / 108 ° C).

Gehärtetes Epoxid EpoxAcast® 655 hat hohe physikalische Eigenschaften und ist für eine Vielzahl von Anwendungen, einschließlich der Herstellung-harte Werkzeuge, Vakuum Umformwerkzeugen / Schimmelpilze, Spritzgießformen, Gießereimustern, Vorrichtungen und Metall Umformwerkzeuge verwendet. Je nach Projektanforderungen kann Teil A Basis mit 101 FAST, 102, 103 oder HT-Medium SLOW HIGH TEMP Härter gemischt werden.

EpoxAcast 655 Basis (Teil A) und Härter (Teil B), sind separat erhältlich. Wählen Sie aus 101 FAST, 102 MEDIUM, SLOW oder HT 103 Härter

Epoxacast 670HT

EpoxAcast® HT 670 (früher 20-136) ein epoxy Vergussmasse, mit eine Wärmebeständigkeit bis zu 177 ° C bietet, mit Nachhärtung. EpoxAcast® 670 HT verfügt über eine niedrige Viskosität. D EpoxAcast® 670 HT sorgt für minimalen Blaseneinschluss und bietet eine extra lange Arbeitszeit von 3 Stunden.

Gießstücke mit vernachlässigbarer Schrumpfung, sehr hart, sehr stark und hitzebeständig . EpoxAcast® 670 HT ist ideal für die Herstellung von Vakuumform Formen, Gießereimustern, Umformwerkzeuge und Vorrichtungen, harte Walzen, Industrieteilen und hohe Schlagwerkzeugen . EpoxAcast® 670 HT ist auch Geeignet für die Verkapselung von Anwendungen oder zur Verwendung als Hochtemperatur -Epoxykleber um eine Vielzahl von Oberflächen zum Verkleben.

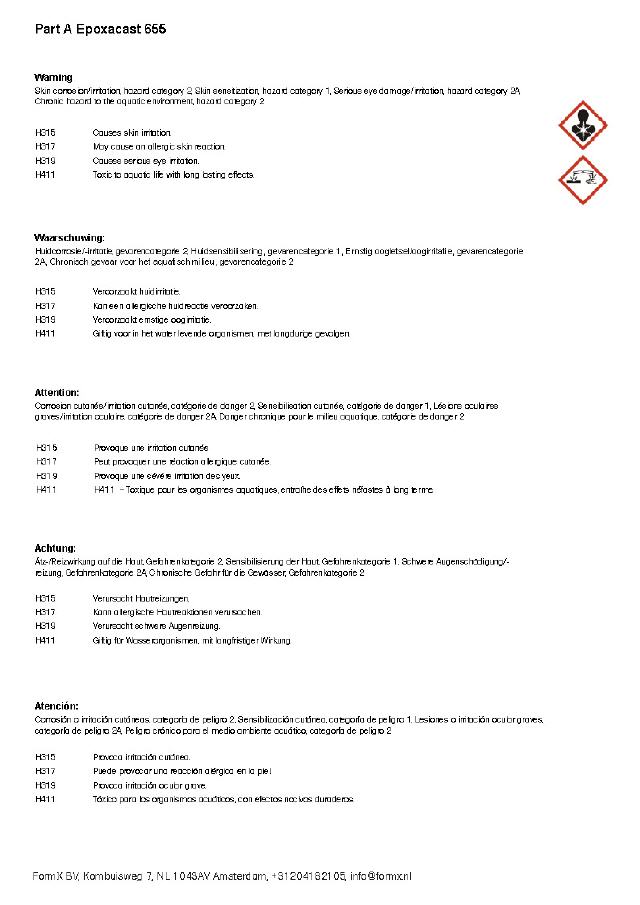

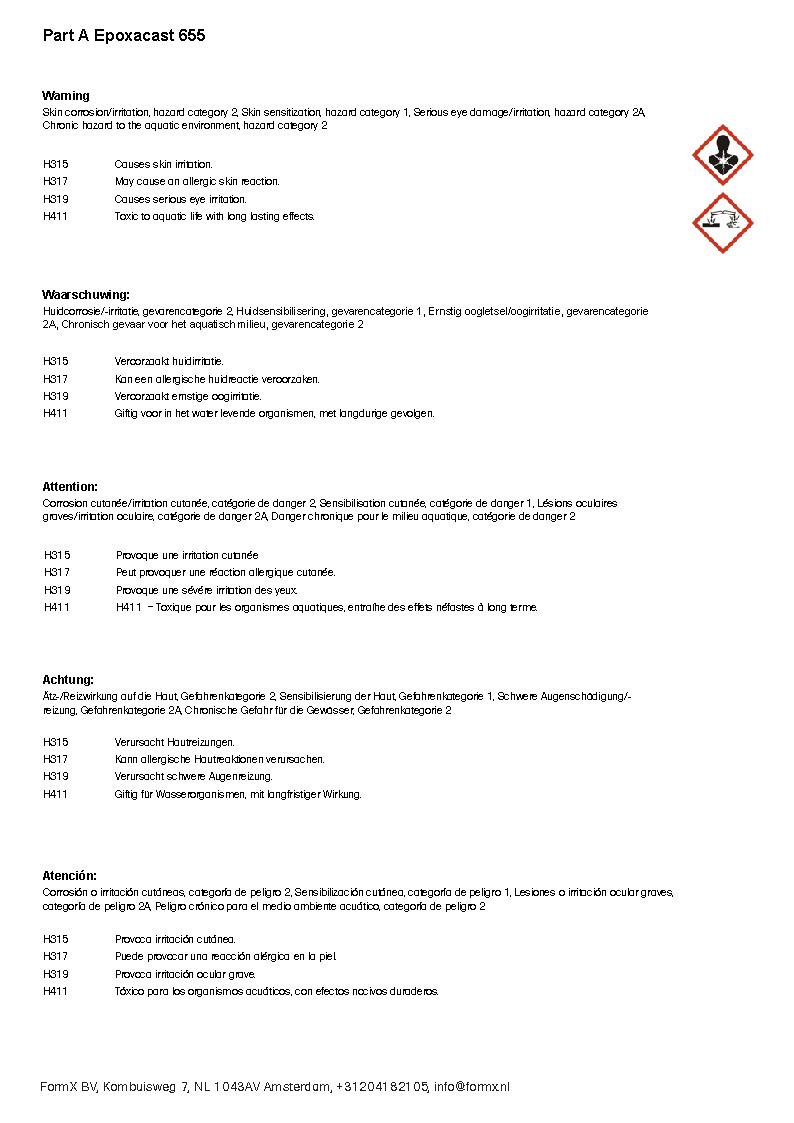

Epoxacast 655 Safety

- Lesen Sie das Sicherheitsinformationsetikett. Klicken Sie auf das Bild.

- Read the safety information label. Click on the image

- Lisez les informations de sécurité cliquez sur l'image

- Lea la etiqueta de información de seguridad. Haga clic en la imagen

- Lees het veiligheidsinformatie label. Klik op de afbeelding.

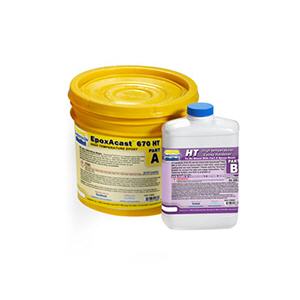

epoxacast 670

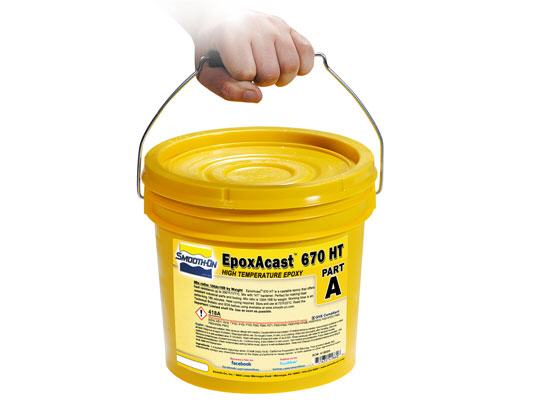

  • Epoxacast 670HT /1,31kg

    Highest Temperature Resistance

    82,93 EUR

  • Epoxacast 670HT /5.26kg

    Highest Temperature Resistance

    211,58 EUR

EpoxAcast 670 HT Hardener

Epoxacast 670 mix ratio pot life cure time
Epoxacast 670 HT hardener 100A : 16B by weight 3 hours 24 Hours followed by: Heat cure for 2 hrs at 175°F/80°C followed by 3 hrs at 300°F/150°C

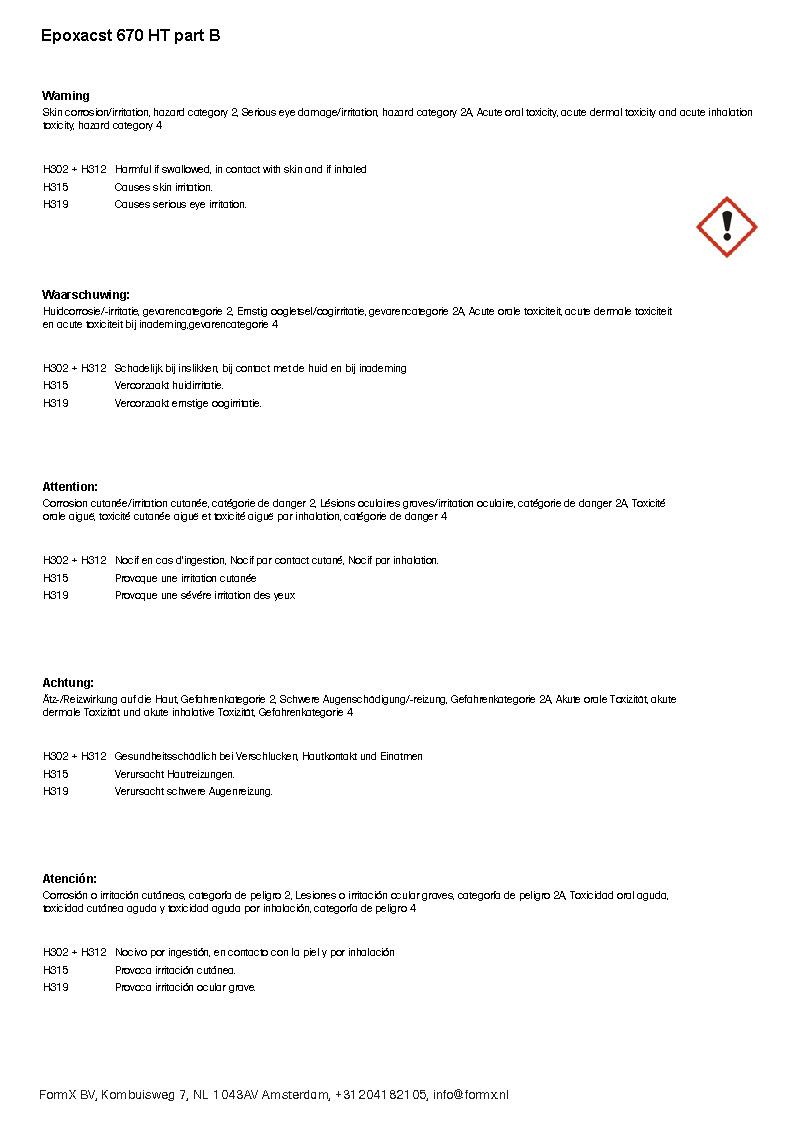

Hardener Safety Information

Epoxacast Hardeners

  • Hardener 101 (fast) /230gr

    101 FAST Hardener - Trial Size PART B ONLY When used with EpoxAcast 650: Mix ratio: 100A:12B by weight Pot Life: 20 min. - Cure Time: 1 hour Net Weight : 0.5 Lbs.

    23,24 EUR

  • Hardener 101 Slow Quart

    This is the Hardner ONLY for the EpoxAmite System - The FAST version. EpoxAmite 100 Epoxy Laminating System is an easy-to-use liquid epoxy system formulated for a wide variety of fabrication appl...

    68,46 EUR

  • Hardener 102 (medium) /270gr

    102 MEDIUM Hardener - Trial Size PART B ONLY When used with EpoxAcast 650: Mix ratio: 100A:13B by weight Pot Life: 90 min. - Cure Time: 4 hours Net Weight : 0.5 Lbs.

    17,46 EUR

  • Hardener102 Medium 1.04 kg

    102 MEDIUM Härter - In Verbindung mit EpoxAcast 650: Mischungsverhältnis: 100A: 13B nach Gewicht ...

    40,74 EUR

  • Hardener 103 (slow) /250gr

    103 SLOW Hardener - Trial Size PART B ONLY When used with EpoxAcast 650: Mix ratio: 100A:14B by weight Pot Life: 3.5 hours - Cure Time: 24 hours Net Weight : 0.5 Lbs.

    24,41 EUR

  • Hardener 103 Slow Quart

    103 SLOW Härter - Trial Größe TEIL B nur in Kombination mit EpoxAcast verwendet 650: Verhältnis m...

    46,83 EUR

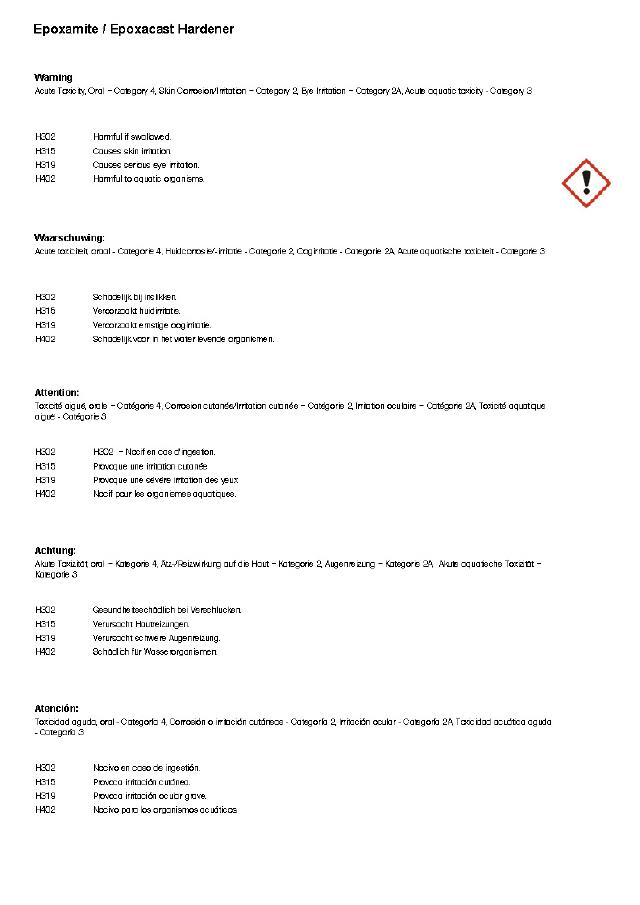

Epoxacast Hardener Safety

- Lesen Sie das Sicherheitsinformationsetikett. Klicken Sie auf das Bild.

- Read the safety information label. Click on the image

- Lisez les informations de sécurité cliquez sur l'image

- Lea la etiqueta de información de seguridad. Haga clic en la imagen

- Lees het veiligheidsinformatie label. Klik op de afbeelding.

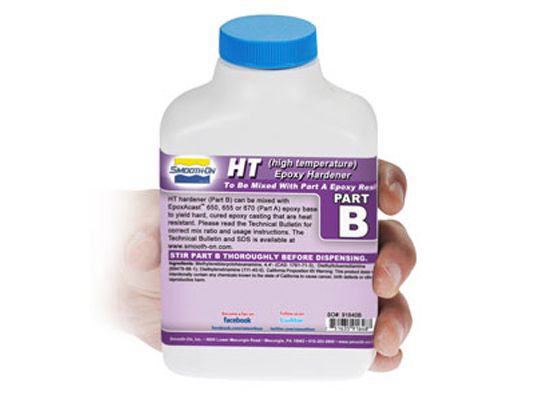

Epoxacast HT Hardener

  • Hardener HT (High Temperature) /180gr

    HT HIGH TEMP Hardener - Trial Size PART B ONLY When used with EpoxAcast 650: Mix ratio: 100A:10B by weight Pot Life: 3 hours - Cure Time: 24 hours followed by heat cure schedule - see technical bulletin Net Weight : .4 Lbs.

    21,72 EUR

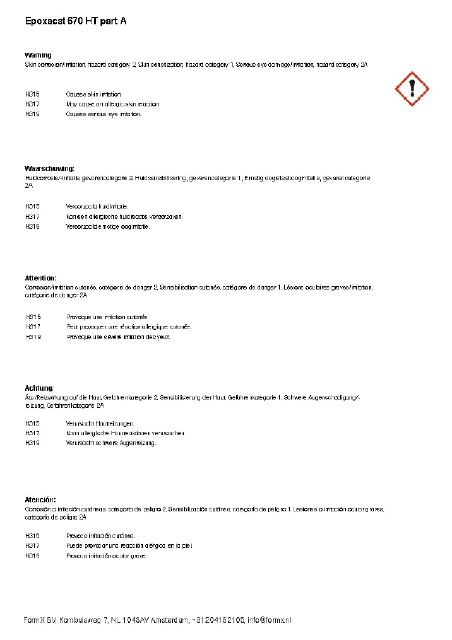

EpoxAcast™ 670HT

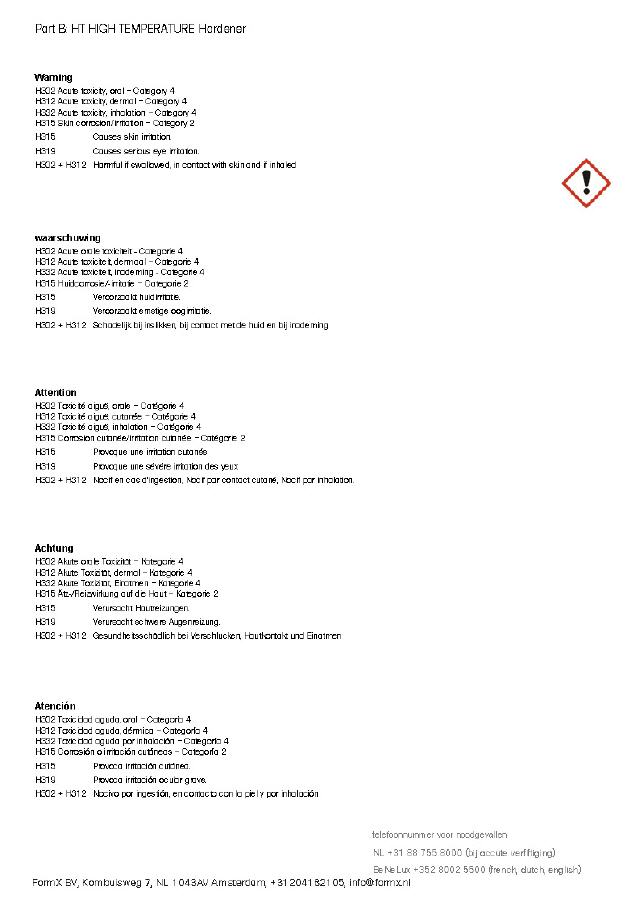

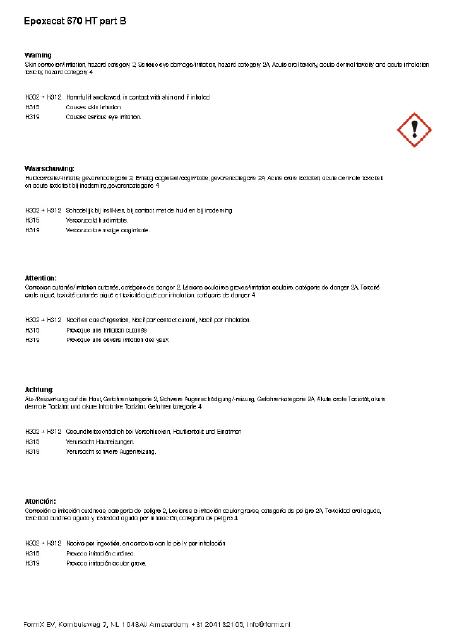

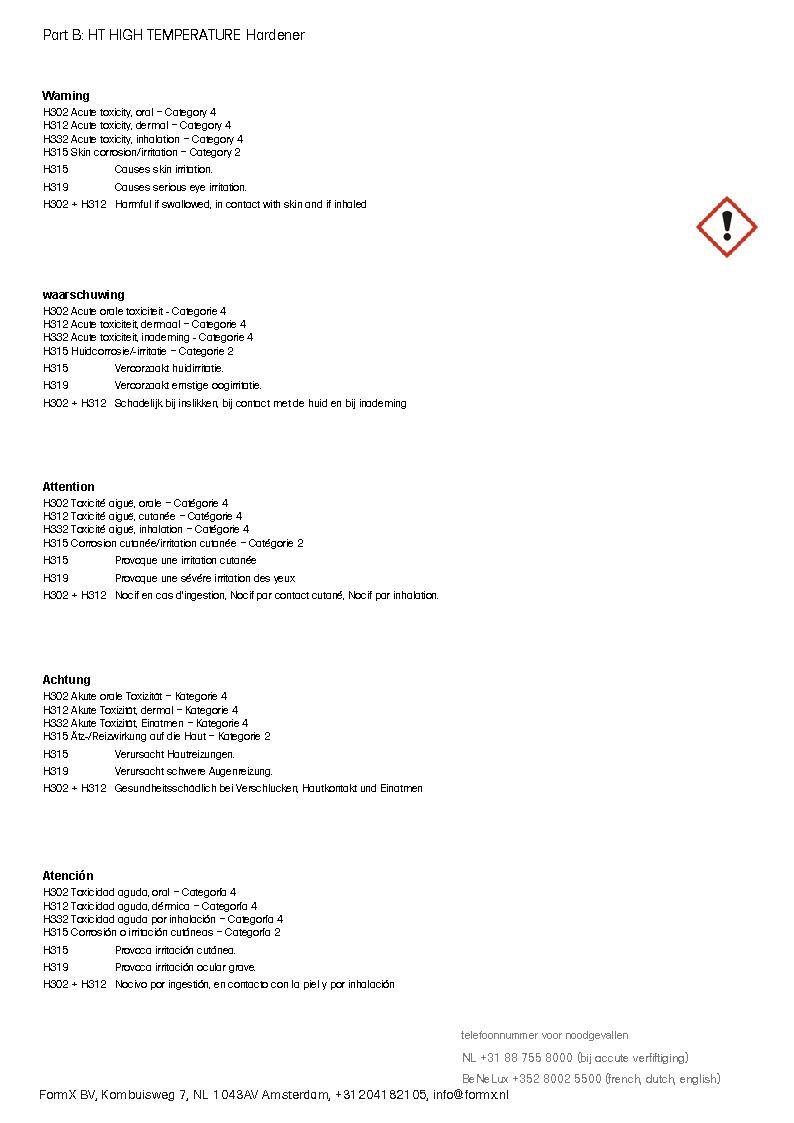

HT Hardener safety

- Lesen Sie das Sicherheitsinformationsetikett. Klicken Sie auf das Bild.

- Read the safety information label. Click on the image

- Lisez les informations de sécurité cliquez sur l'image

- Lea la etiqueta de información de seguridad. Haga clic en la imagen

- Lees het veiligheidsinformatie label. Klik op de afbeelding.

Epoxacast HT Hardener

  • Hardener HT (High Temperature) /180gr

    HT HIGH TEMP Hardener - Trial Size PART B ONLY When used with EpoxAcast 650: Mix ratio: 100A:10B by weight Pot Life: 3 hours - Cure Time: 24 hours followed by heat cure schedule - see technical bulletin Net Weight : .4 Lbs.

    21,72 EUR

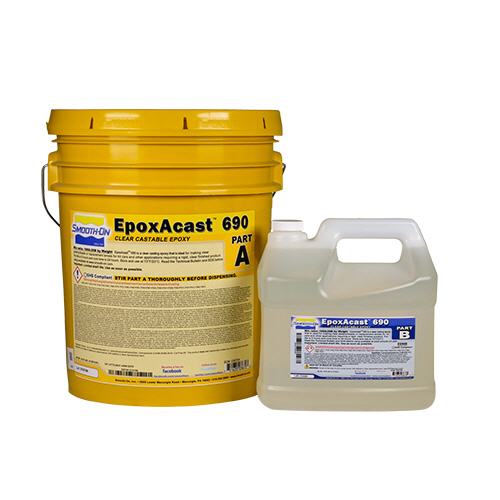

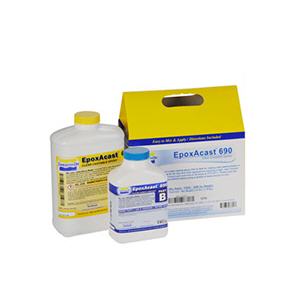

EpoxAcast™ 690 Clear

Epoxacast 690 Clear

Die Epoxacast 690 Clear, ist ein Wasserklares und UV-beständiges Epoxidharz, ideal zur Herstellung von Schmuck, Perlen oder Sculpturen, klarer Formen und Prototypen. Die Güsse härten mit vernachlässigbarer Schrumpfung aus und sind sehr hart und stark. Die Epoxacast 690 ist auch geeignet zur Einkapselung für elektronische Baugruppen. Die empfholene maximum Gießstarke ist 5 cm.

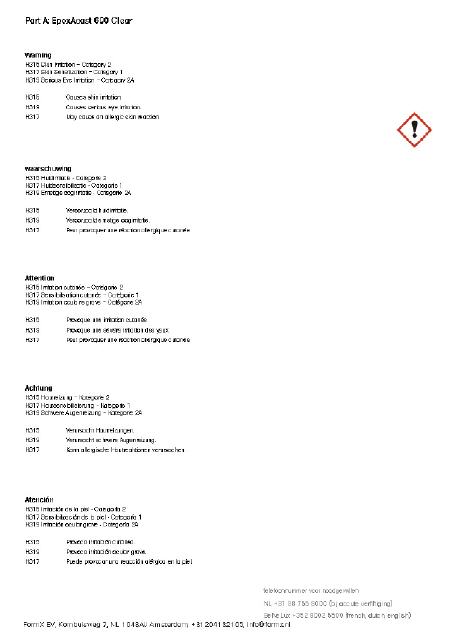

Safety Information

epoxacast 690

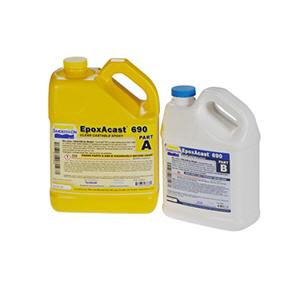

  • Epoxacast 690 clear /1,18kg

    EpoxAcast® 690 is a UV resistant clear casting epoxy resin that is ideal for making clear jewelry/beads or replacement lenses for kit cars and other applications requiring a rigid, clear finished product. EpoxAcast® 690 can be colored with SO-Strong® color tints.

    63,08 EUR

  • Epoxacast 690 Clear /4,71kg

    EpoxAcast® 690 is a UV resistant clear casting epoxy resin that is ideal for making clear jewelry/beads or replacement lenses for kit cars and other applications requiring a rigid, clear finished product. EpoxAcast® 690 can be colored with SO-Strong® color tints

    207,85 EUR

  • Epoxacast 690 Clear /20,63kg

    UV resistant clear casting epoxy resin for applications requiring a rigid, clear finished product. Set 20,63 kg (15,88 kg A + 4,76 kg B).

    799,29 EUR

EpoxAcast 690 Clear Hardener

Epoxacast 690 mix ratio pot life cure time
Epoxacast 690 clear hardener 100A : 30B by weight 5 hours 24 hours

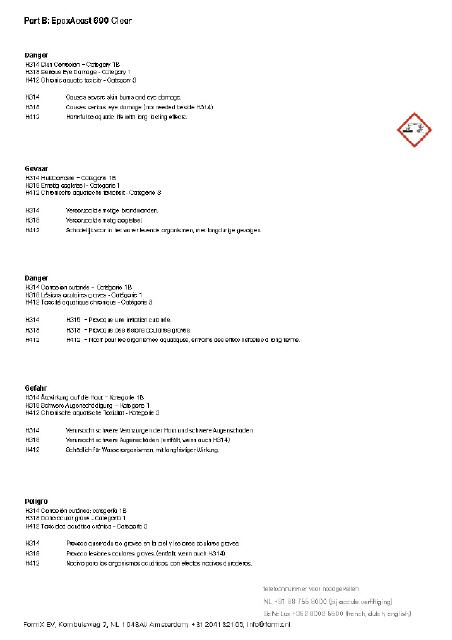

Epoxacast HT Hardener Safety Information

- Read the safety information label. Click on the image

- Lisez les informations de sécurité cliquez sur l'image

- Lea la etiqueta de información de seguridad. Haga clic en la imagen

- Lees het veiligheidsinformatie label. Klik op de afbeelding.

- Lesen Sie das Sicherheitsinformationsetikett. Klicken Sie auf das Bild.

HT Hardener

  • Hardener HT (High Temperature) /180gr

    HT HIGH TEMP Hardener - Trial Size PART B ONLY When used with EpoxAcast 650: Mix ratio: 100A:10B by weight Pot Life: 3 hours - Cure Time: 24 hours followed by heat cure schedule - see technical bulletin Net Weight : .4 Lbs.

    21,72 EUR

Härter
Epoxacast 692 Clear

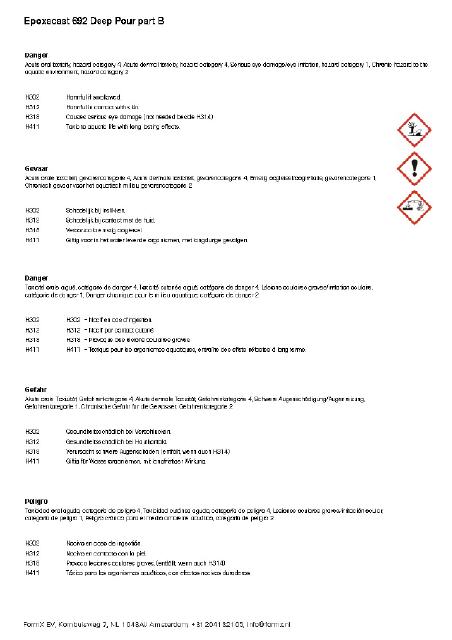

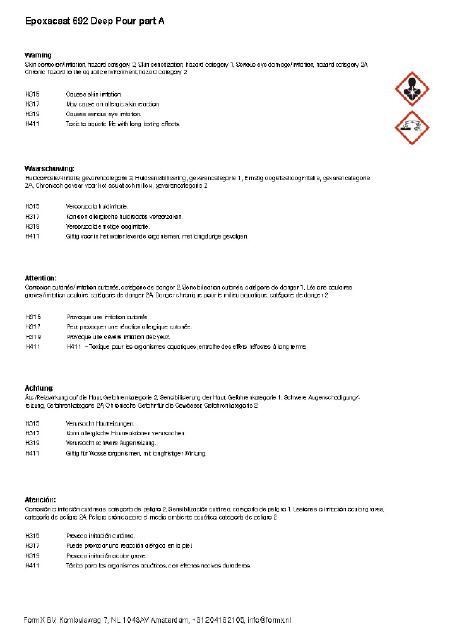

692 Safety Informations

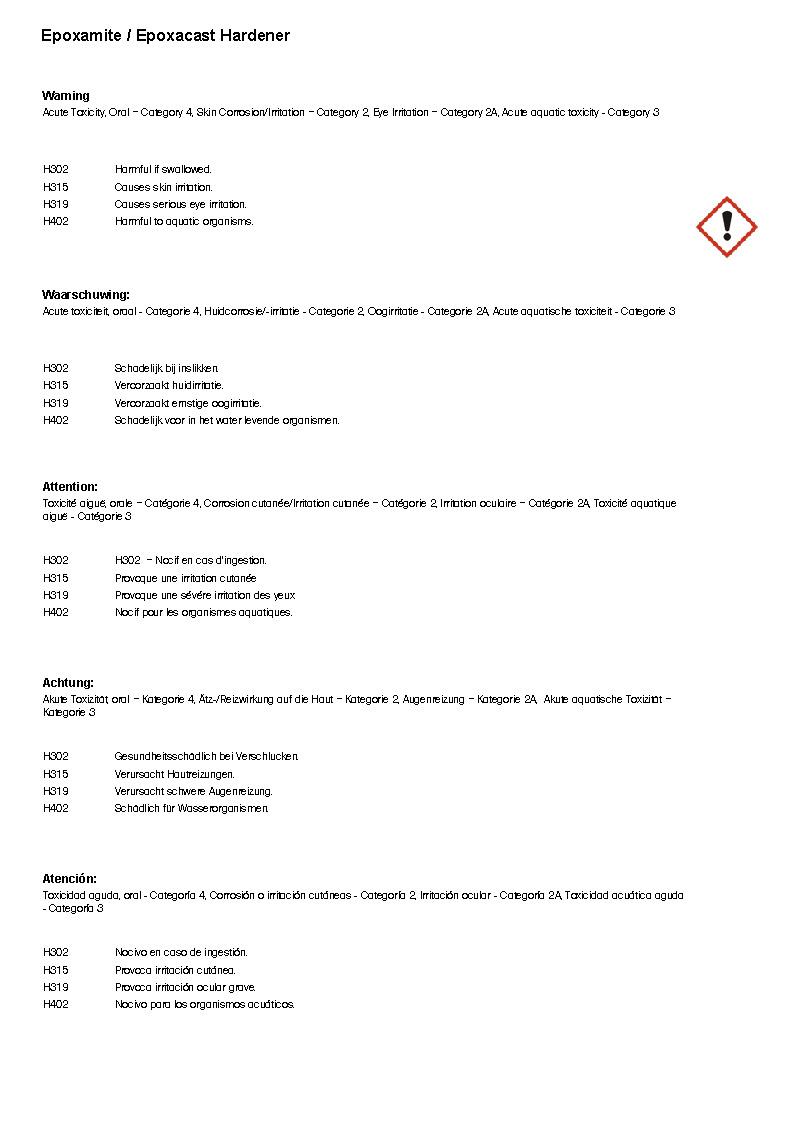

Epoxacast Hardener Safety

- Lesen Sie das Sicherheitsinformationsetikett. Klicken Sie auf das Bild.

- Read the safety information label. Click on the image

- Lisez les informations de sécurité cliquez sur l'image

- Lea la etiqueta de información de seguridad. Haga clic en la imagen

- Lees het veiligheidsinformatie label. Klik op de afbeelding.

HT Hardener

  • Hardener HT (High Temperature) /180gr

    HT HIGH TEMP Hardener - Trial Size PART B ONLY When used with EpoxAcast 650: Mix ratio: 100A:10B by weight Pot Life: 3 hours - Cure Time: 24 hours followed by heat cure schedule - see technical bulletin Net Weight : .4 Lbs.

    21,72 EUR

Hardener Safety Information

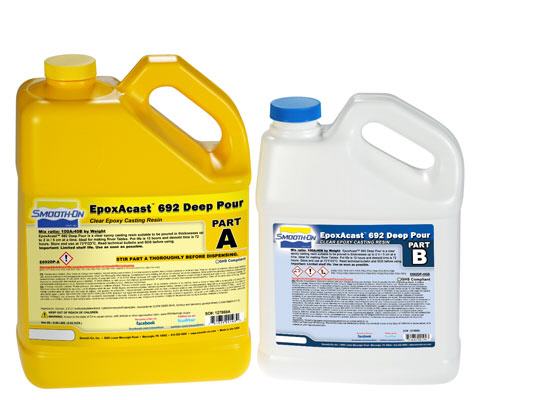

EpoxAcast 692

  • Epoxacast 692 Clear /5.08kg

    EpoxAcast 692 Deep Pour is an UV resistant clear casting epoxy resins suitable for a variety of ...

  • Epoxacast 692 Clear /25.4kg

    EpoxAcast 692 Deep Pour is an UV resistant clear casting epoxy resins suitable for a variety of ...

Epoxacast Hardeners

  • Hardener 101 (fast) /230gr

    101 FAST Hardener - Trial Size PART B ONLY When used with EpoxAcast 650: Mix ratio: 100A:12B by weight Pot Life: 20 min. - Cure Time: 1 hour Net Weight : 0.5 Lbs.

    23,24 EUR

  • Hardener 101 Slow Quart

    This is the Hardner ONLY for the EpoxAmite System - The FAST version. EpoxAmite 100 Epoxy Laminating System is an easy-to-use liquid epoxy system formulated for a wide variety of fabrication appl...

    68,46 EUR

  • Hardener 102 (medium) /270gr

    102 MEDIUM Hardener - Trial Size PART B ONLY When used with EpoxAcast 650: Mix ratio: 100A:13B by weight Pot Life: 90 min. - Cure Time: 4 hours Net Weight : 0.5 Lbs.

    17,46 EUR

  • Hardener102 Medium 1.04 kg

    102 MEDIUM Härter - In Verbindung mit EpoxAcast 650: Mischungsverhältnis: 100A: 13B nach Gewicht ...

    40,74 EUR

  • Hardener 103 (slow) /250gr

    103 SLOW Hardener - Trial Size PART B ONLY When used with EpoxAcast 650: Mix ratio: 100A:14B by weight Pot Life: 3.5 hours - Cure Time: 24 hours Net Weight : 0.5 Lbs.

    24,41 EUR

  • Hardener 103 Slow Quart

    103 SLOW Härter - Trial Größe TEIL B nur in Kombination mit EpoxAcast verwendet 650: Verhältnis m...

    46,83 EUR

Thinners

Epic Epoxy Thinner

  • Epic™ Epoxy Thinner /0,41 kg

    Epic™ Epoxy Thinner /0,41 kg

    17,02 EUR

Instructions

Instructions Epoxacast

Preparation– Avoid breathing fumes - use in a well ventilated area at minimum. NIOSH approved respirator is recommended. Wear safety glasses, long sleeves and rubber gloves to minimize skin contact.

Materials should be stored and used in a room temperature environment (73°F/23°C). Elevated temperatures will reduce pot life. EpoxAcast® 670 Resin and Hardener must be properly measured and thoroughly mixed to achieve full, high-strength, solid-cure properties.

Because no two applications are quite the same, a small test application to determine suitability for your project is recommended if performance of this material is in question.

Applying A Release Agent – For releasing epoxy from non-porous surfaces such as resin, metal, glass etc., use Ease Release 200 or 205 (available from Smooth-On) to prevent adhesion.

IMPORTANT: To ensure thorough coverage, lightly brush the release agent with a soft brush over all surfaces of the mold or model. Follow with a light mist coating and let the release agent dry for 30 minutes.

Pre-mix Part A Thoroughly - Separation may have occurred in transit or storage. Pre-mix for 2 minutes prior to dispensing to a uniform consistency using a straight edge paddle (paint stirrer) or turbo mixer (drill attachment).

Measuring / Dispensing – Accurate measurement by weight is required for the material to cure properly and develop full physical properties. Dispense Parts A and B in proper proportions into clean plastic, metal or wax-free paper containers. You must use an accurate scale (gram scale or triple beam balance scale) to weigh these components properly. Do not attempt to measure components by volume.

Adding Color & Fillers
- EpoxAcast® 670 HT can be colored with SOStrong® color tints (from Smooth-On). Pre-mix tint with Part A thoroughly and then add Part B. A variety of dry fillers can also be added. Pre-mix dry filler with Part A before adding Part B.

Mixing – Be sure mixing utensils are clean and free of any potential contaminants such as dirt, dust or grease. Mix Parts A and B thoroughly for at least 3 minutes with a square edged mixing stick. Be aggressive and scrape sides and bottom of mixing container several times. Use the square edge of mixing stick to bring material off of the sides of container and blend. If using a drill mixer, follow with hand mixing as directed above to ensure thorough mixing.

Vacuuming - EpoxAcast® 670 HT is low in viscosity compared to other epoxy cating systems and does not require vacuum degassing. If you choose to vacuum the material, subject mixture to 29 h.i.g. mercury in a vacuum chamber until mixture rises, breaks and falls. Allow for 5 times volume expansion in mixing container.

Pouring – If casting EpoxAcast® 670 into a rubber mold, pour mixture in a single spot at the lowest point of the mold. Let the mixture seek its own level. A uniform flow will help minimize entrapped air.

If making vacuum forming molds, it is best to use piano wire (15/1000 inch gauge) to make vacuum holes.

Cure Time: Refer to specified Cure Times in Handling Properties section. Cured material will be hard and unable to penetrate with a finger nail. Cured epoxy can now be dry sanded. If machining or sanding, wear NIOSH approved mask to prevent inhalation of particles. Pot life and cure time values are dependent on mass and mold configuration, as epoxies are mass-sensitive.

Heat Curing - For best results, EpoxAcast® should be heat cured in an dedicated oven. Cure at 175° F / 80° C for two hours, followed by three hours at 300° F / 150° C. Allow material to cool to room temperature before use.

Painting – Cured EpoxAcast® can be painted or primed and then painted with acrylic enamel paints. Let paint fully dry before putting part into service.

Removing Epoxy – Uncured / Non-curing epoxy: Scrape as much material as possible from the surface using a scraper. Clean the residue with E-POX-EE KLEENER®, lacquer thinner, acetone or alcohol. Follow safety warnings pertaining to solvents and provide adequate ventilation.
