Plasti Paste

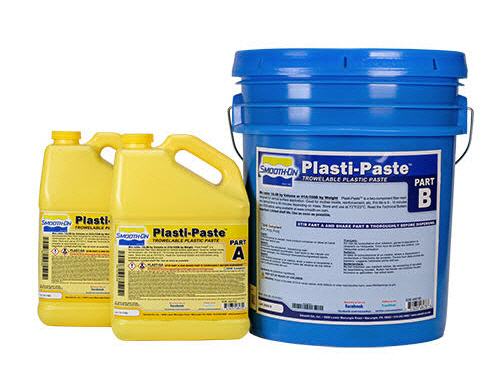

Plasti-Paste Stuzformmasse

Geruchsfreier und faserverstärkter 2 Komponenten-Harz. Dieser Kunststoff kan mit einem Pinsel oder Spachtel tropffrei an senkrechten Flächen angewendet werden. Die Bearbeitungszeit beträgt 8-10 Minuten, die Aushärtungszeit ist 90 Minuten.

- Geeignet für starke und leichte Unterstützung oder Stützformen

- Geeignet für Verstärkung hinter einem Gelcoat von Shell Shock

- Geeignet für gestalterische Zwecke

Technical bulletin Plasti-Paste

Products

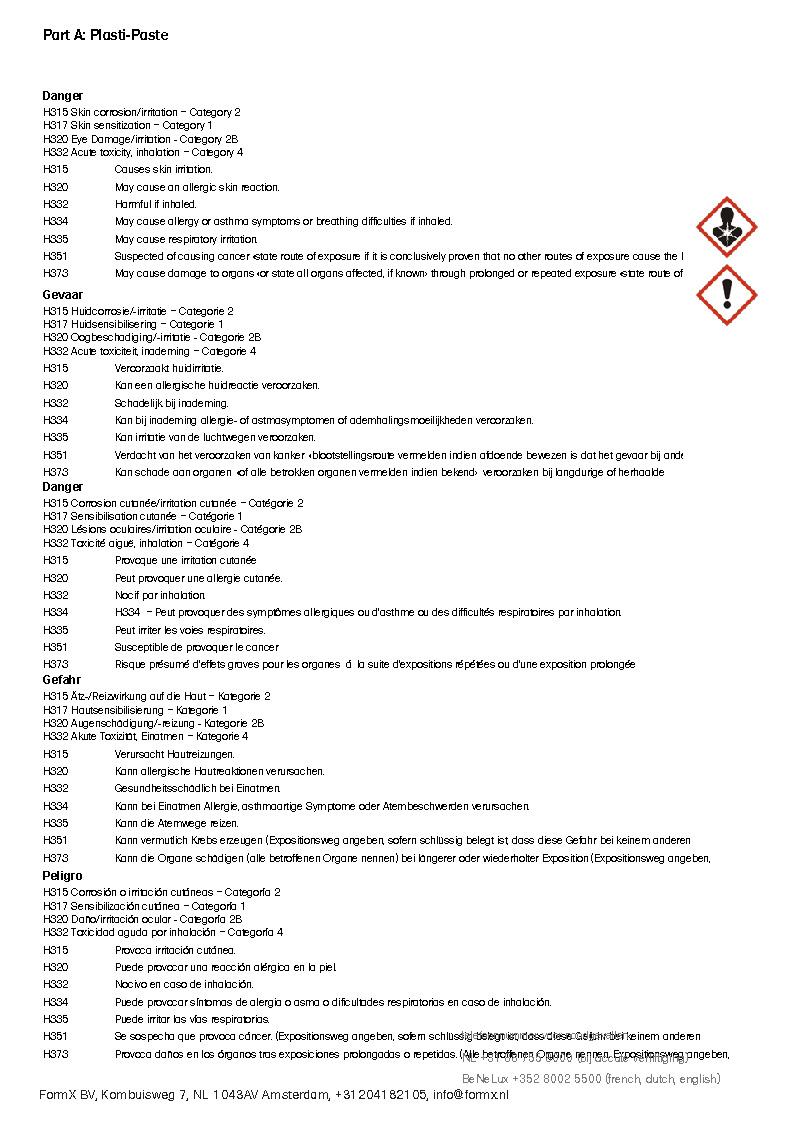

- Lesen Sie das Sicherheitsinformationsetikett. Klicken Sie auf das Bild.

- Read the safety information label. Click on the image

- Lisez les informations de sécurité cliquez sur l'image

- Lea la etiqueta de información de seguridad. Haga clic en la imagen

- Lees het veiligheidsinformatie label. Klik op de afbeelding.

Video

Plasti Paste

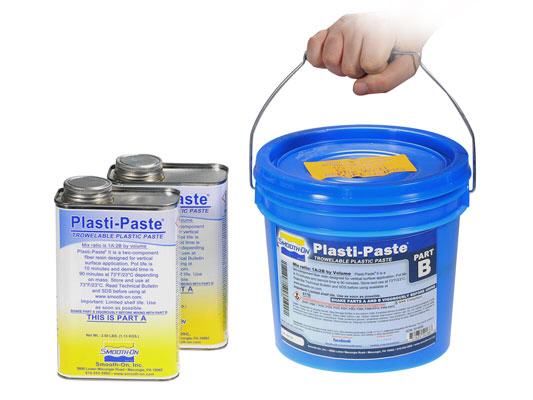

  • Plasti-Paste™ /5kg

    Shore D70 | Entformzeit: 90 min

    167,88 EUR

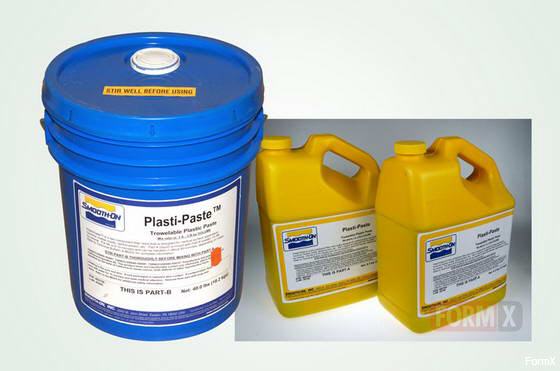

  • Plasti-Paste™ /26kg

    Shore D70 | Entformzeit: 90 min

    672,60 EUR

Informations

Preparation – Materials should be stored and used in at room temperature 23° C. This product has a limited shelf life and should be used as soon as possible. Mixing should be done in a wellventilated area. Wear safety glasses, long sleeves and rubber gloves to minimize contamination risk. If making a 2 or more piece mother mold, apply appropriate shim apparatus to rubber mold exterior.

Because no two applications are quite the same, a small test application to determine suitability for your project is recommended if performance of this material is in question.

Applying A Release Agent – This product is adhesive and will bond to many surfaces. A sealer followed by a release agent is necessary to facilitate demolding when applying as a mother mold over a cured mold rubber. Use Sonite™ Wax followed by a coating of Universal™ Mold Release or Ease Release 200 release agent. A liberal coat of release agent should be applied onto all surfaces that will contact the plastic. You can also apply aluminum foil as a barrier over the surface followed by an application of Mold Release agent.

PRE-MIX Part B Before You Start – Part B is a thick paste containing oil that needs to be pre-mixed before being dispensed into measuring container. Dig deep to re-disperse oil & paste components that may have separated.

Measuring – The components of Plasti-Paste™ requires two different sized containers. The first will be used for measuring out amounts of Part A and Part B. The second should be large enough to contain both components and allow thorough mixing. IMPORTANT: Shelf life of Part A (Yellow Container) is reduced after opening. Remaining product should be used as soon as possible. XTEND-IT™ Dry Gas Blanket will prolong shelf life of unused liquid urethanes.

Mixing – Mix Ratio is 1A:3B by volume (41A:100B by weight). (Step 1) Fill measuring container to the top with Part B paste, making sure to eliminate any air voids. Level off the top of the container and remove any excess material. The paste should then be thoroughly emptied into a larger container that will act as your mixing container. Repeat As Necessary. (Step 2) Fill the measuring container to the top with Part A liquid and empty into mixing container. Mix thoroughly for 2-3 minutes making sure that you scrape the sides and bottom of the mixing container several times. Eliminate color streaks. If adding So-Strong™ color tints, pre-mix color with the Part B before adding Part A.

Mixing Large Batches - A ‘Turbine’ mechanical mixer attached to a power drill will make mixing large batches of material much easier.

IMPORTANT: Shelf life of product is reduced after opening. Remaining product should be used as soon as possible. Immediately replacing the lids on both containers after dispensing product will help prolong the shelf life of the unused product. XTEND-IT™ Dry Gas Blanket (available from form X) will significantly prolong the shelf life of unused liquid urethane products.

Applying – Mixed material thickens quickly and pot life is limited. Do not delay between mixing and applying. To increase working time, spread entire container contents over rubber mold surface and cover and spread mixture to uncovered areas. Apply uniformly with spatula over mold surface. Material will adhere to itself if additional layers are needed. Apply at least 1 cm thickness, making sure rubber mold is thoroughly covered. For maximum strength and heat resistance, 1.27 cm thickness is recommended. Large molds may require added thickness for support shell stability. Supports (wood or metal) may be embedded for added stability and handling. Prevent a jagged surface; Final layer of Plasti-Paste™ can be smoothed by wiping solvent (denatured alcohol or acetone) onto surface with gloved hand.

Making A Two Piece Shell – Plasti-Paste™ will bond to most surfaces and itself tenaciously. A barrier coat of paste wax followed by Universal™ Mold Release applied to all surfaces is necessary to prevent adhesion. Applying aluminum foil to the contours of all surfaces followed by Universal™ Mold Release will also prevent adhesion.

Curing – Plastic will be hot immediately following cure. Let cool to room temperature before handling. Material will develop handling strength and can be handled in about 90 minutes depending on mass. At this point, it is stable enough to demold, re-assemble over rubber mold and make a casting (hold 2 or more piece assemblies together with elastic bands, mold straps or bolts). Large sections should be bolted together to minimize distortion. Full strength develops in 24 hours.

Heat Resistance – Fully cured plastic with a minimum thickness of (1.27 cm) will resist temperatures up to 55°C. To improve heat resistance to 70°C, post cure material at 65°C for 16 hours.

If machining or sanding cured plastic, wear NIOSH approved mask to prevent inhalation of residual particles.

Storage – For best storage results, cast into rubber mold with a gypsum plaster or other dimensionally stable material, assemble mold inside the Plasti-Paste™ support shell and store assembled molds on a level surface indoors at room temperature in a dry place.

++

You might also need...

  • Mixing Beakers
  • Measuring Cups & Jars
  • Weighting devices
  • Brushes
  • Protective Gear such as gloves
  • Release agents
Mischen, Messen & Wiegen

Messen, Wiegen und Mischen

Mixing

  • Measuring cup /30ml

    Measuring cup 30ml + graduation

    0,19 EUR

  • Measuring cup /125ml

    Measuring cup 125 ML + Graduation

    0,48 EUR

  • Measuring cup /350 ml

    Mixing and measuring beaker

    0,57 EUR

  • Measuring cup /700 ml

    Mixing and measuring beaker

    0,63 EUR

  • Measuring cup /1400 ml

    Mixing and measuring beaker

    0,80 EUR

  • Measuring cup /2300 ml

    Mixing and measuring beaker

    1,46 EUR

  • SO mixing cup /473ml

    SO mixing cup /16oz

    1,04 EUR

Mixing

  • SO mixing cup /946ml

    SO mixing cup /32oz

    1,09 EUR

  • SO mixing cup /1892ml

    SO mixing cup /64oz

    2,84 EUR

  • SO mixing cup /4880ml

    SO mixing cup /165oz

    3,35 EUR

  • Mixing beaker /1000ml

    plastic mixing beaker 1162 ml

    0,64 EUR

  • Mixing beaker round /500ml

    Mixing Beaker, Round, Polypropylene, 500 cc contents

    0,25 EUR

  • Mixing Bowl square /2000ml

    180x180 mm

    0,91 EUR

  • Flexible mixing cup /500ml

    Flexible mixing bowl for gypsum, alginate etc. 500 ml

    8,05 EUR

Mixing

  • Flexible mixing cup /1750ml

    Flexible mixing bowl for gypsum, alginate etc. 1750 ml

    19,34 EUR

  • Injektionsspritze mit

    Katheterspitze /50ml

    9,06 EUR

  • Wooden tongue spatula

    with rounded ends

    3,42 EUR

  • Mixing stick small

    220x17x3 mm

    0,05 EUR

  • Mixing stick big

    300x20x4 mm

    0,24 EUR

  • Turbine Mixer

    Turbine Mixer

    17,70 EUR

  • Colad Turbomix /per 200

    Paint stirrers Professional per 200 stirrers in dispenser.

    61,38 EUR

  • Tristar KW2430 Scale

    Digitale keukenweegschaal. Weegt tot 2kg op 1 gram nauwkeurig. Exclusief batterij.

    20,21 EUR

Pinsel

Pinsel

  • flat brush 30mm

    flache Einwegbürsten

    0,80 EUR

  • flat brush 40mm

    flache Einwegbürsten

    0,92 EUR

  • flat brush 50mm

    flache Einwegbürsten

    1,39 EUR

  • flat brush 60mm

    flache Einwegbürsten

    1,38 EUR

  • flat brush 70mm

    flache Einwegbürsten

    1,39 EUR

  • Calupaint Platte 40mm

    Calupaint Platte 40mm

    2,60 EUR

  • polyesterkwast 20mm

    polyester brush 20mm round

    3,09 EUR

  • polyesterkwast 25mm

    polyester brush 25mm round

    3,51 EUR

  • polyesterkwast 35mm

    polyesterkwast 35mm

    2,21 EUR

  • polyesterkwast 50mm

    polyester brush 50mm

    3,46 EUR

  • Polyester kwast 75mm

    Polyester brush, 75 mm

    3,33 EUR

  • Pinsel 40mm, holz, blank

    Brush, flat, 40mm

    2,84 EUR

Schutzkleidung

Sicherheit

  • 3M safety glasses Classic

    3M safety glasses Classic

    15,19 EUR

  • Glove Nitrile M

    Glove Nitrile M

    11,01 EUR

  • Glove Nitrile XL

    Glove Nitrile XL

    11,01 EUR

  • Glove Nitrile L

    Glove Nitrile L

    11,01 EUR

  • Glove Nitrile S

    Glove Nitrile S

    11,01 EUR

  • 3M 06941 Halfgelaatmasker

    3M 06941 Halfgelaatmasker

    50,53 EUR

  • Paint spray mask Colad

    Easy to wear paint spray mask

  • Filter ABEK1 for 3M 6200 maskers

    Protection against chemicals vapors

    36,87 EUR

  • Stenchmask carbon fibre

    Stenchmask carbon fibre

    5,41 EUR

Trennmittel

Trennmittel

Spray Releases

  • Safety Info Acmos

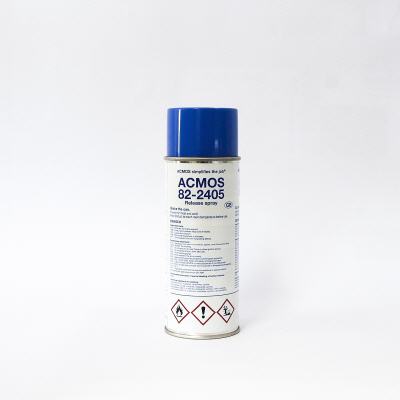

  • Acmos 82 aerosol /400gr

    Trennmittel in einer Sprühflasche. Geeignet für Polyester, Epoxidharze, PMMA und Polyurethane. Fü...

    20,63 EUR

  • Ease Release 200 aerosol /400gr

    Removable aerosol release agent - silicone based - 400 gram spraycan

    21,16 EUR

  • Ease Release 300 aerosol /400gr

    for PU, epoxy, polyester, RTV silicones and thermoplastics.

    20,24 EUR

Spray Releases

  • Safety Info Ease Release Group

  • Ease Release 400 aerosol /400gr

    Removable aerosol release agent - silicone based - spraycan 400grams

    20,27 EUR

  • Ease Release 500 aerosol /400gr

    Removable aerosol release agent - silicone based - spraycan 400 gram

    22,30 EUR

Spray Releases

  • Safety Info Universal Mold Release

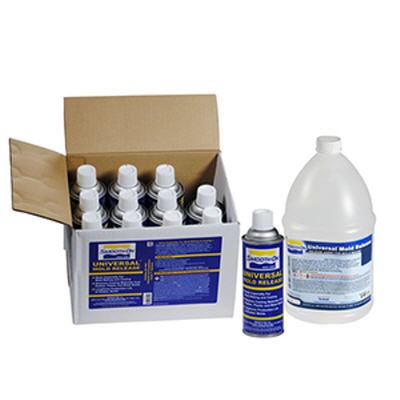

  • Univ.Mold Release aerosol /400gr
